Thermal Interface Materials

Thermal Interface Gel & Grease

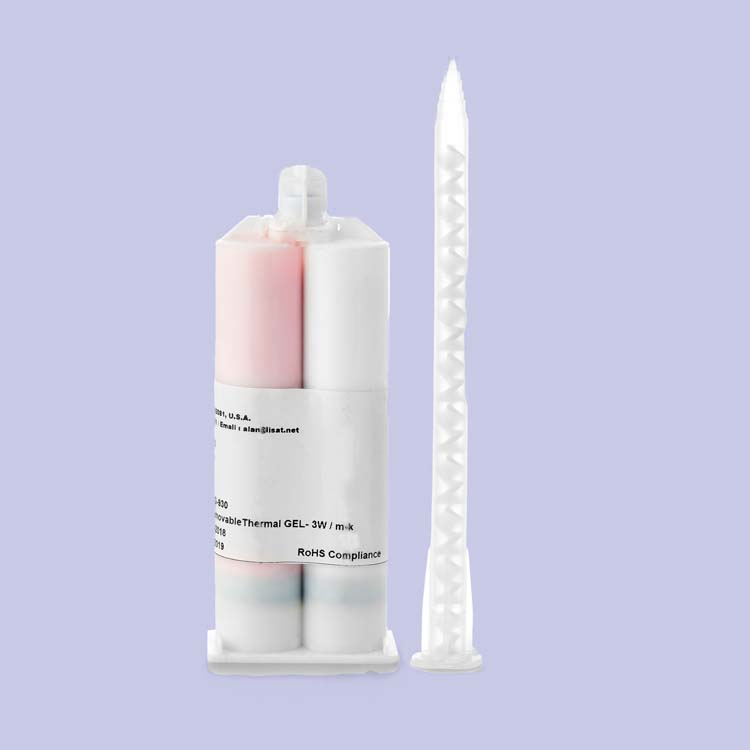

This family of products consists of 3 main types. Thermal Interface Gel is made up of a two-part, high performance and thermally conductive liquid gap filling material which can be cured at room temperature or accelerated by heat. The Thermal Interface Grease is a highly conformable paste substance that requires no curing or mixing. And lastly the Removable Thermal Gel is two-part liquid gap filling material which is cured at room temperature. When cured, it remains at a low modulus elastomer that helps relive CTE stresses during thermal cycling and yet it maintains enough modulus to prevent pump out from the interface. Most significantly, it can be easily removed for rework.

Please visit this page for contact information or submit an enquiry.

** Click on Part Number to view and download datasheet.

** Please

or

and click on Part Number to view and download datasheet.

Part NumberAdditional InformationHardness (Shore 00)Thermal Conductivity (W/m-K) Density (g/cc)
LST-RTG-940 Removable thermel gel704.02.85
LST-RTG-930 Removable thermel gel603.02.95
LST-RTG-920 Removable thermel gel602.02.95
LST-TIG-835 Thermal interface gel553.52.8
LST-TIG-820 Thermal interface gel552.53.0
LST-TIG-815 Thermal interface gel551.82.8
LST-TIG-730 Thermal interface grease-3.03.03
LST-TIG-720 Thermal interface grease-2.02.98
LST-TIG-710 Thermal interface grease-1.02.86
Note: The data and information provided are used for representative purposes only
